Southsea-bath Products

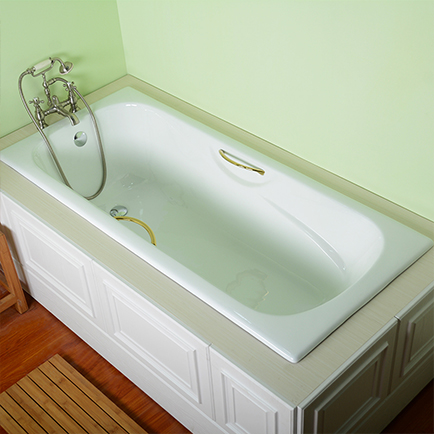

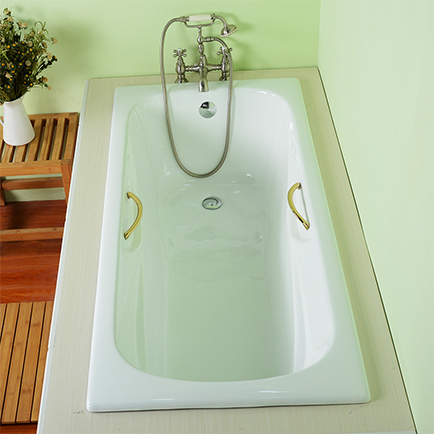

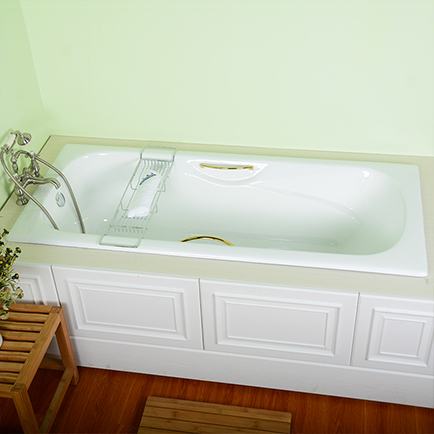

NH-014’’ Vitreous Enameled Cast Iron Bath Tub
The casting process of cast iron bathtub is completed by gravity casting. After polishing and shot blasting, it is enameled for 3-4 times under 900 degree high temperature.The bottom of the bathtub can also be equipped with a variety of non-slip patterns to ensure the safety and reliability of the use process. In the meantime, bath handles still can add according to client need match different type metal armrest. Using the traditional cast iron enamel process, the product combines acid and alkal
buy it now+

product details

DESCRIPTION

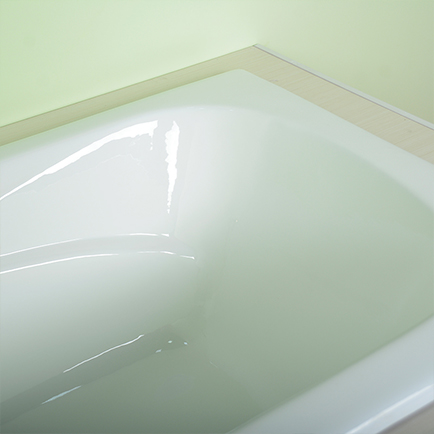

This bathtub is Vitreous White Enameled

This process varies in the amount of time it takes to complete due to the size of the bath and thickness of the enamel. The bath is then (ground coated) this is like an undercoat which is sprayed on to the bath and force dried before being placed into the furnace for its first of approximately four firings at a temperature in excess of 800 degrees Celsius. After 30-50 minutes, the bath is taken out of the furnace and allowed to cool. Then it is stoned down to try and smooth the surface of the newly fired ground coat so it is ready for its first of 3-4 applications of (cover coat) this is the actual enamel that when fired in the furnace it gives you the white shiny surface.


●Rectangular drop-in or under-mount installation options allows the customer to choose what best suites their needs.

●A textured slip-resistant bottom is available to take the worry out of slipping and sliding as you move about the tub.

●Wide shape designed for two-person bathing.


PRODUCTS BENEFITS

Southsea Bath’s enameled Cast-Iron combines the strength, durability, and insulation benefits of cast-iron with the scratch, chip, and burn resistance of a baked, powder coat finish and comes with an exceptional Lifetime Limited Warranty. When these materials are combined it gives the sink or tub the strength to last a lifetime of use. Constructed of durable Cast Iron which provides incomparable water temperature retention. Product Meets or Exceeds the Following Codes and Standards: ASME.


SPECIFICATION

●Item Number: NH-014

●Item Dimension: 1500/1600/1700 x 750 x 390/420MM; 1700/1800 x 800 x 420MM

●Color: White enameled interior and back glazed

●Style: Drop In, Soaking

●Material: Southsea Cast Iron

●Installation Method: Drop In or Undermount

●Drain Location: Right

●Package Quantity: 7-10pcs/wooden pallet

●MADE IN CHINA


DIMENSION

●Overall Length: 1500/1600/1700/1800MM (measured from left most to right most point on outer rim)

●Overall Width: 750MM (measured from back most to front most point on outer rim)

●Overall Height: 390/420MM (measured from the top of tub rim to the bottom of drain hole)


CAD DRAFT


NOTE: Tub dimensions may vary +/- 10 mm and are subject to change. For best results, Southsea Bath STRONGLY recommends that Cast iron baths are extremely heavy, please wear appropriate safety equipment when moving and installing these products. Southsea Bath assumes no responsibility for improper package disassembly and rough-in installation.


OPTION

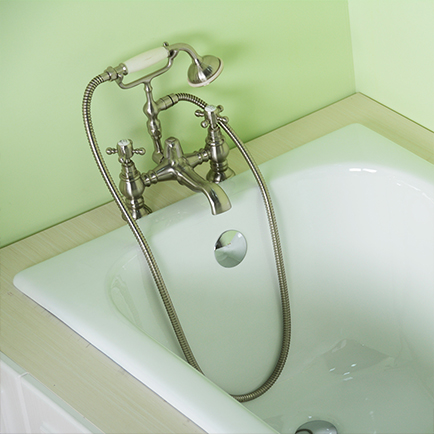

●Tap Hole: Without in general, but it is available to be with.

●Bathtub Grip: Y1603SB OR Y1603LB

●Bath Drain: NH-T502

●Slip-resistant Pattern: Available with or without

●Bath Pillow: Available with or without

●Bath Mat: Available with or without
